Battery Charger

RadioLink CM120

Compact and Portable, F121 Companion

USB Input · Multiple Power Supply Input

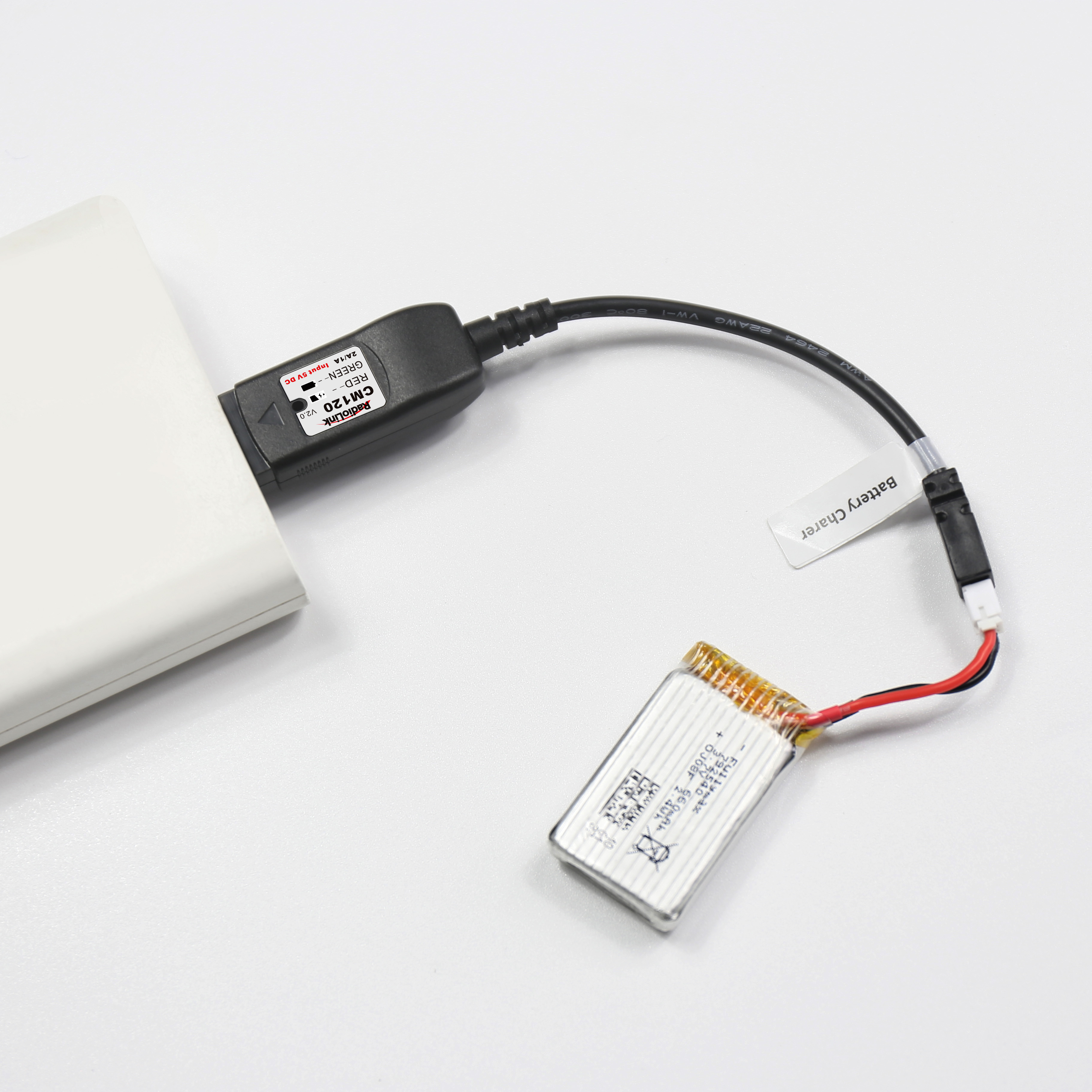

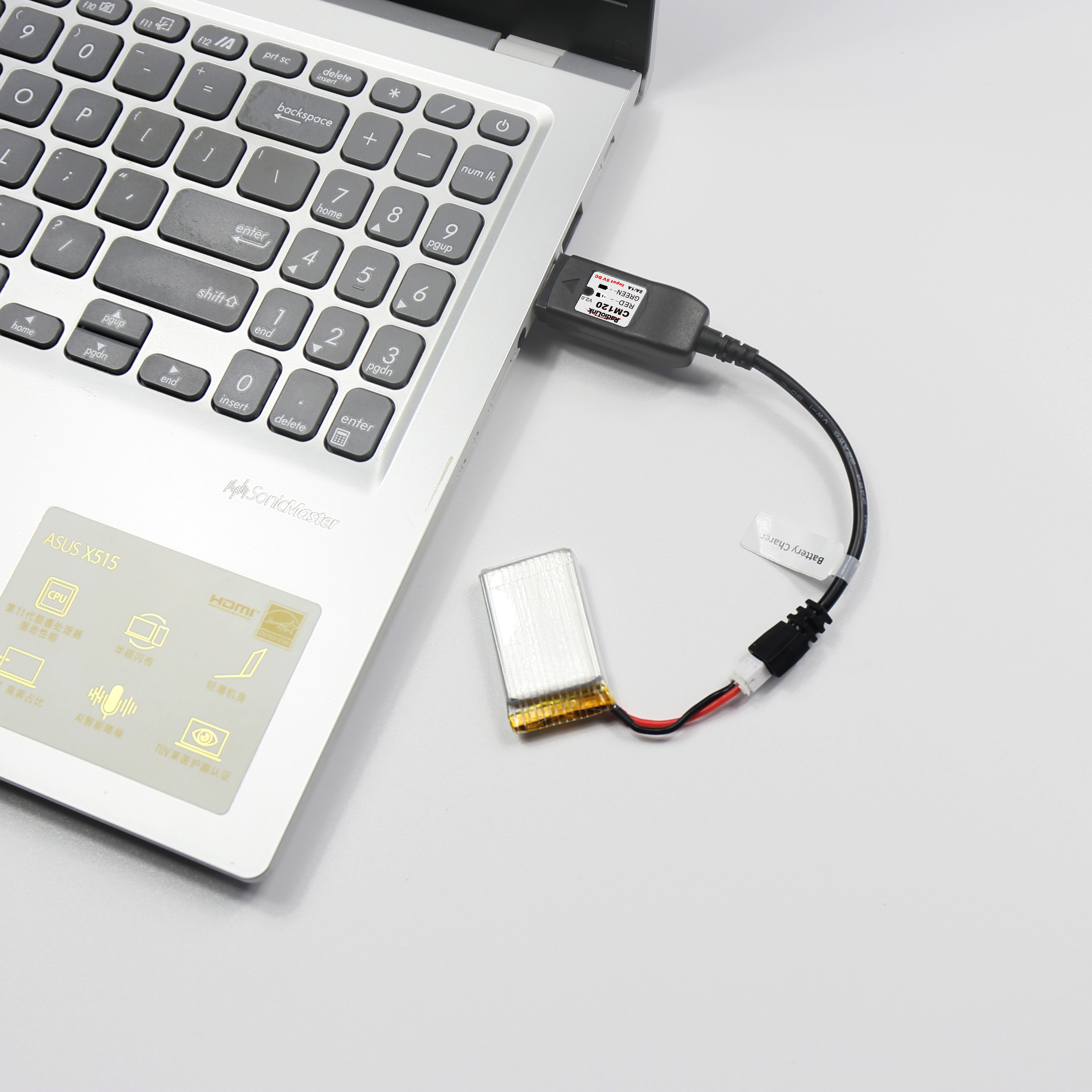

CM120, with universal USB 5V DC input, adapters, computers, mobile power supplies, car chargers, and other power supply equipment, can be used as the power supply of CM120.

Charging is as convenient and simple as a mobile phone. Safely charge anywhere, anytime.

Fast Charge · Outfield Flight without Waiting

1A or 2A charging current is optional.

The maximum charging current of 2A can be selected for outdoor emergency use.

A 660mAh battery can be fully charged in 20 minutes if charged by CM120*.

* Laboratory test data, the specific time is related to the maximum current of the power supply equipment.

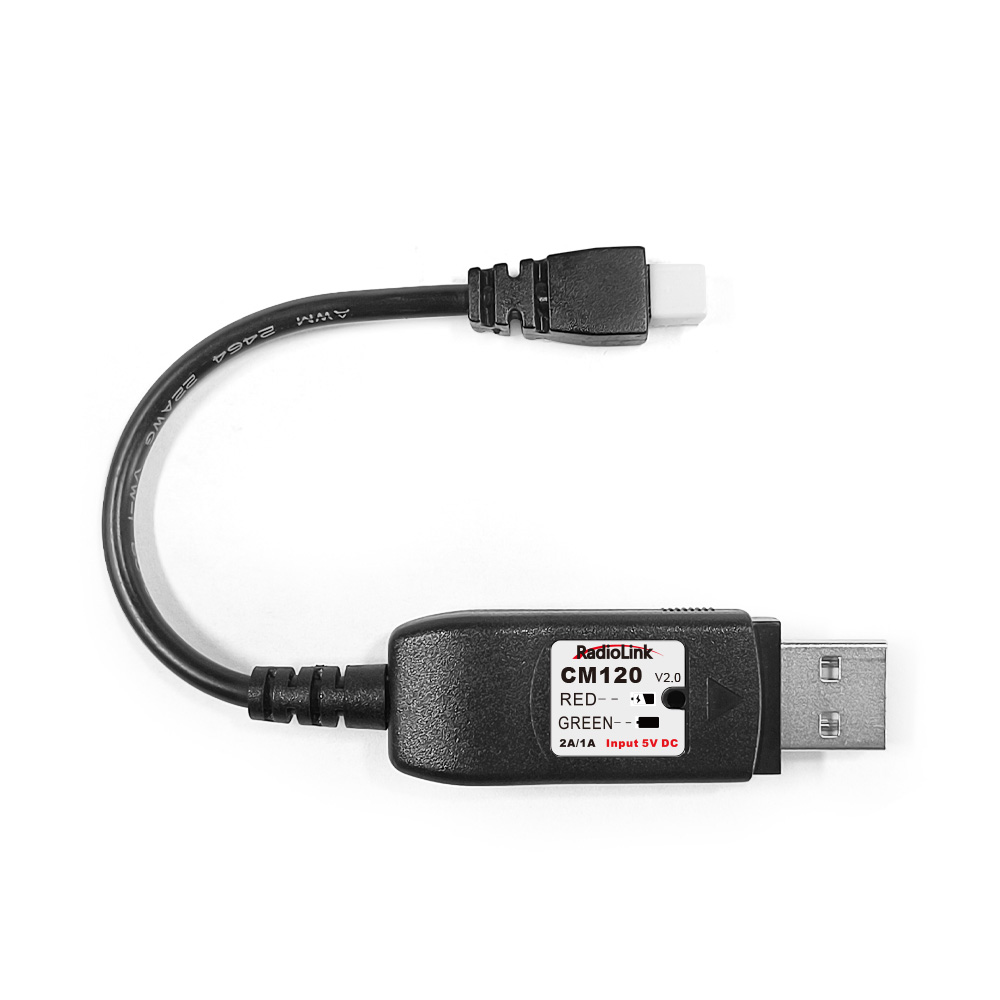

Green LED keeps always on means the battery is fully charged.

Red LED flash means charging mode.

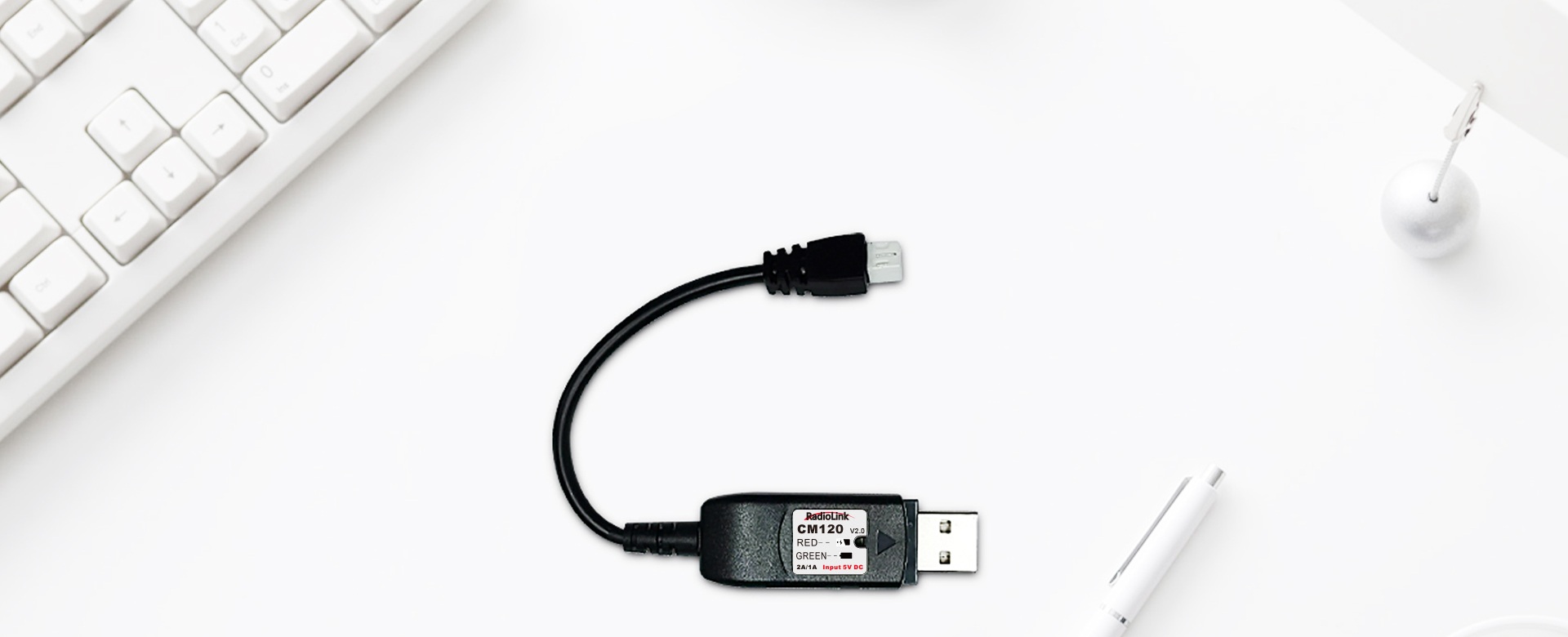

Compact and Portable

Pocket-sized and extremely portable, CM120 is a tiny charger with

almost negligible size and weight* that can be carried anywhere without stress.

(size: 16cm, weight: 10g)

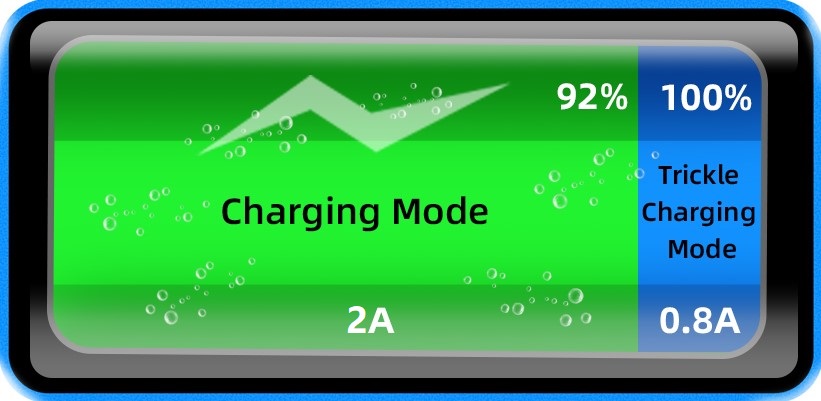

Trickle Charging Mode

More Power and Longer Playtime

The charging precision is 0.02V, and the charging efficiency is up to 82%.

Battery capacity will be detected automatically during charging. When the battery is nearly fully charged (the voltage reaches 4.16V), it automatically switches to trickle charging, adjusting to the optimal 1C rate to improve battery life while charging efficiently. Ensure the strong power of the battery and maximize the battery's play life.

CM120 Packing List
